| SKU | 183578 |
|---|---|
| Weight | 0.950000 |
| UPC | 00075114014045 |
| Country of Origin | CN |
| Package Width | 2.0 |
| Package Length | 2.0 |
| Package Height | 3.0 |
| Model Number | Z502-10 |
| Brand | SuperStrut |
| Assembled Width | 2.0 |
| Assembled Length | 2.0 |
| Assembled Height | 3.0 |
| Manufacturer Name | ABB INSTALLATION PRODUCTS |

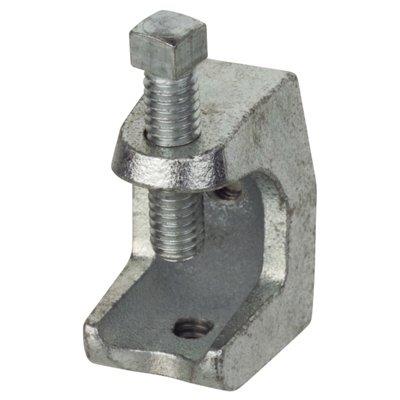

Beam Clamp, Malleable Iron, 3/8-In.
$7.49
3/8″, malleable iron beam clamp, -16 threaded openings, fits flanges up to 1″ thick, supports threaded rod, threaded brindle rings & electrical boxes, malleable iron with electroplated bright zinc plating, set screw rating 750, static load limit 750 lb, based on a safety factor of 3, load rating based on bottom hole of beam clamp, torque inlb 120.
- 3/8″-16 threaded openings
- Fits flanges up to 1″ thick
- Material: Malleable Iron
- Finish: Bright zinc electroplated
- Static Load Limit: 750 Lbs. Based on a Safety Factor of 3. Load Rating Based on Bottom Hole of Beam Clamp
- Torque in Inch-Lbs: 120
- Set Screw Load Rating: 750
| Weight | 0.950000 kg |
|---|---|
| Dimensions | 2.0 × 2.0 × 3.0 cm |
