| SKU | 122918 |
|---|---|
| Weight | 0.070000 |
| UPC | 00719852938347 |
| Country of Origin | CN |
| Package Width | 1.0 |
| Package Length | 1.0 |
| Package Height | 1.0 |
| Model Number | 750068-0502 |
| Brand | Anderson Metals |
| Assembled Width | 1.0 |
| Assembled Length | 1.0 |
| Assembled Height | 1.0 |
| Manufacturer Name | ANDERSON METALS CORP |

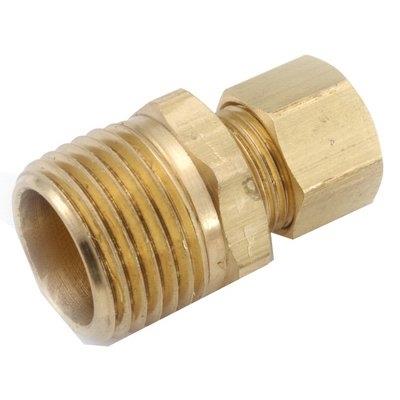

Compression Fitting, Connector, Lead Free Brass, 5/16 Compression x 1/8 In. MPT
$4.49
5/16″ Compression x 1/8″ Male Pipe Thread, Brass Connector, Lead Free Compliant Product Which Meets Public Law 111-380, Bulk.
- Compliant Product Which Meets California AB-1953
- Compliant Product Which Meets Vermont SB-152
- Three Piece Construction – Nut, Sleeve (Or Ferrule) And Body
- Use With Copper, Aluminum Or Plastic Tubing (Plastic requires 60P Sleeve And 61P Insert)
- Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
- Standard Fittings Use Short Nuts. Long Nuts Are Available For Higher Vibrations Applications.
- To Buy Compressions Fittings with Long Nut, Please Add a “1” In Front Of The Part Number. (i.e. 68 = 168)
- Easy To Disassemble, No Flaring Tool Required
- Primary Uses: Water, Gasoline, Oil and Vacuum Lines
- To Assemble:
- 1. Cut Smooth, Square End On Tubbing
- 2. Slide Nut, Then Sleeve Onto Tube. Thread Must Face End.
- 3. Insert Tube Into Fitting
- 4. Thread Nut Onto Fitting Until Snug, then as follows: Up To 1/4 Inch = 1-1/4 Turns, 5/16 Inch = 1-3/4 Turns, 3/8 Inch and Up = 2-1/4 Turns
| Weight | 0.070000 kg |
|---|---|
| Dimensions | 1.0 × 1.0 × 1.0 cm |
