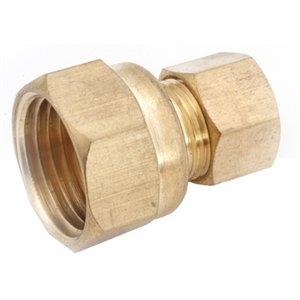

Adapter, Brass, Compression, Female, 7/8 x 3/4 In.

7/8″ Compression x 3/4″ Female Pipe Thread, Brass Adapter, Lead Free Compliant Product Which Meets Public Law 111-380, Bulk.

• Compliant Product Which Meets California AB-1953
• Compliant Product Which Meets Vermont SB-152
• Three Piece Construction – Nut, Sleeve (Or Ferrule) And Body
• Use With Copper, Aluminum Or Plastic Tubing (Plastic requires 60P Sleeve And 61P Insert)
• Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
• Standard Fittings Use Short Nuts. Long Nuts Are Available For Higher Vibrations Applications.
• To Buy Compressions Fittings with Long Nut, Please Add a “1” In Front Of The Part Number. (i.e. 68 = 168)
• Easy To Disassemble, No Flaring Tool Required
• Primary Uses: Water, Gasoline, Oil and Vacuum Lines
• To Assemble:
• 1. Cut Smooth, Square End On Tubbing
• 2. Slide Nut, Then Sleeve Onto Tube. Thread Must Face End.
• 3. Insert Tube Into Fitting
• 4. Thread Nut Onto Fitting Until Snug, then as follows: Up To 1/4 Inch = 1-1/4 Turns, 5/16 Inch = 1-3/4 Turns, 3/8 Inch and Up = 2-1/4 Turns
